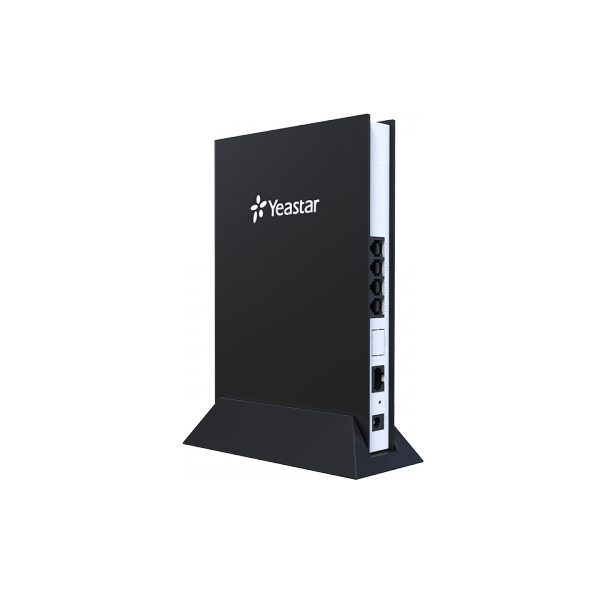

Neogate TA410

Spécifications :

Ports   4 FXO Ports
 Telephony Interfaces   RJ11
 Network Interfaces   1 10/100BASE-T Ethernet
 Protocol    SIP (RFC3261), IAX2
 Transport   UDP, TCP, TLS, SRTP
 Codec   G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM
 Voice Capability   ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
 DTMF Mode   RFC2833, SIP Info, In-band
 Fax   T.30
 QoS   DiffServ, ToS, 802.1 P/Q VLAN tagging
 Network    DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN
 Network Protocol   FTP, TFTP, HTTP, HTTPS, SSH
 Management Protocol   TR-069*
 Signaling   FXO Loop Start, FXO Kewl Start
 Caller ID   BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
 Disconnect Methods   Busy Tone, Polarity Reversal
 FXO Connectivity   Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection
 Power   12V, 1A
 Dimensions (L × W × H) (mm)   200 × 137 × 25
 Humidity   10-90% non-condensing
 Storage Range   -20°C to 65°C, -4°F to 149°F
 Operation Range   0°C to 40°C, 32°F to 104°F
 Mounting   Desktop, Wall-mount
 Compatibility   Interoperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft

Fonctionnalité :

API   Call Back
 Attack Alert   Auto Provisioning with MyPBX
 Backup and Restore   Call Detail Records
 Caller ID Display   Firewall
 Firmware Upgrade by HTTP/TFTP   Hotline
 IP Blacklist   Nat Traversal
 Packet Capture Tool   System Logs
 TR-069   Two-stage dialing
 Web-based Management
